Machines / Sinterix / SX-44
Sinterix · PBF
SX-44
High-throughput SLS printer for functional parts in series production.
Build cylinder440 × 440 × 450 mm
Max. build temperature220 °C
Net weight1980 kg
Power supply380 V, three-phase
Key features
Discover the SX-44
01
High-speed laser sintering
Optimized scanning and heating: parts of about 5 kg printed within 24 hours.
02
High nylon powder reuse rate
PA powder regeneration technology, with utilization close to 100%.
03
High machine utilization
External powder tank for continuous feeding and fast reloading.
04
Intelligent dual-blade recoater
Better surface finish, less powder waste, more efficiency.
Applications

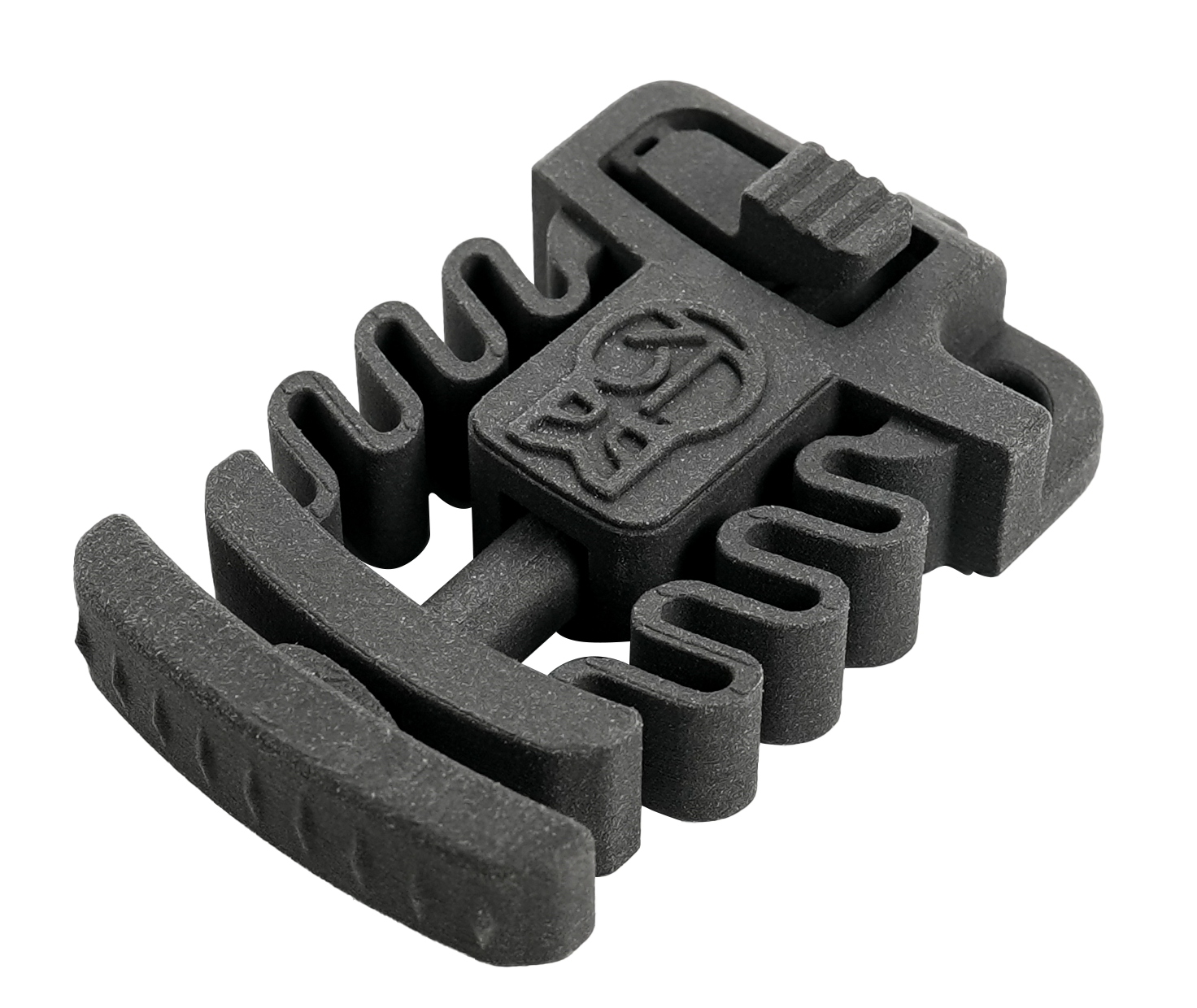

Parts & realizations
Technical data
SX-44 — specifications
| Technology | Powder Bed Fusion (PBF) |
|---|---|
| Build cylinder volume | 440 × 440 × 450 mm |
| Machine footprint | 1775 × 1315 × 2095 mm |
| Net weight | 1980 kg |
| Recommended layer thickness | 0.06–0.3 mm |
| Laser system | CO2 60 W |
| Maximum build temperature | 220 °C |
| Temperature control | 8 independent zones |
| Power supply | 380 V, three-phase |
| Materials | PA12, PA12GB, TPU-23 |
Discuss your SX-44 application
Request a quote, a printed sample or technical information for your project.
