Machines / Sinterix / SX-26
Sinterix · PBF
SX-26
Compact SLS printer for technical prototyping and small batches.
Build cylinder260 × 260 × 400 mm
Max. build temperature280 °C
Net weight800 kg
Power supply380 V, three-phase
Key features
Discover the SX-26
01
Compact structure, small footprint
Integrated powder supply and lifting build platform in a modular, compact design.
02
Easy to use
Intuitive software; removable and replaceable build cylinder.
03
Stable performance, high efficiency
Three-axis dynamic focus and independent thermal control for an optimal thermal field.
04
Adjustable parameters
Open material system for research and development; all parameters independently adjustable.
05
High powder reuse rate
Smart feeding with no overfeed: minimal spent powder generated.
Applications

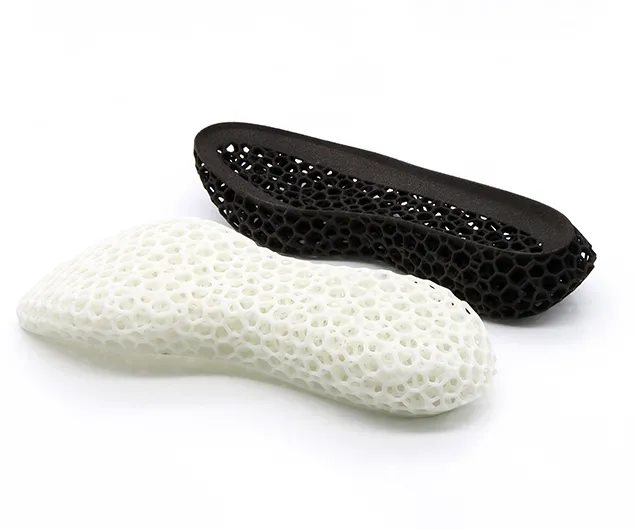

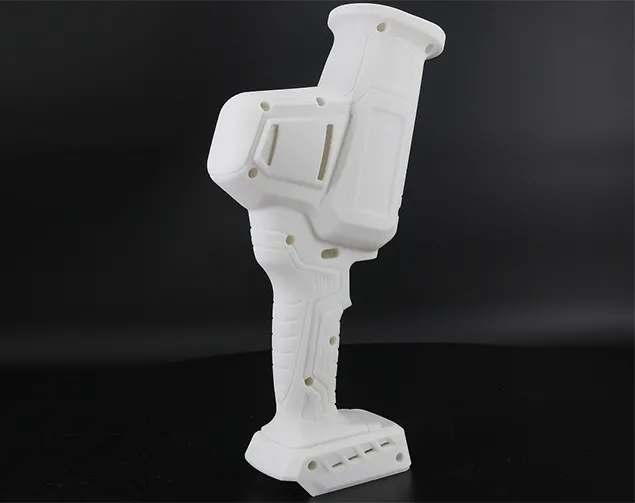

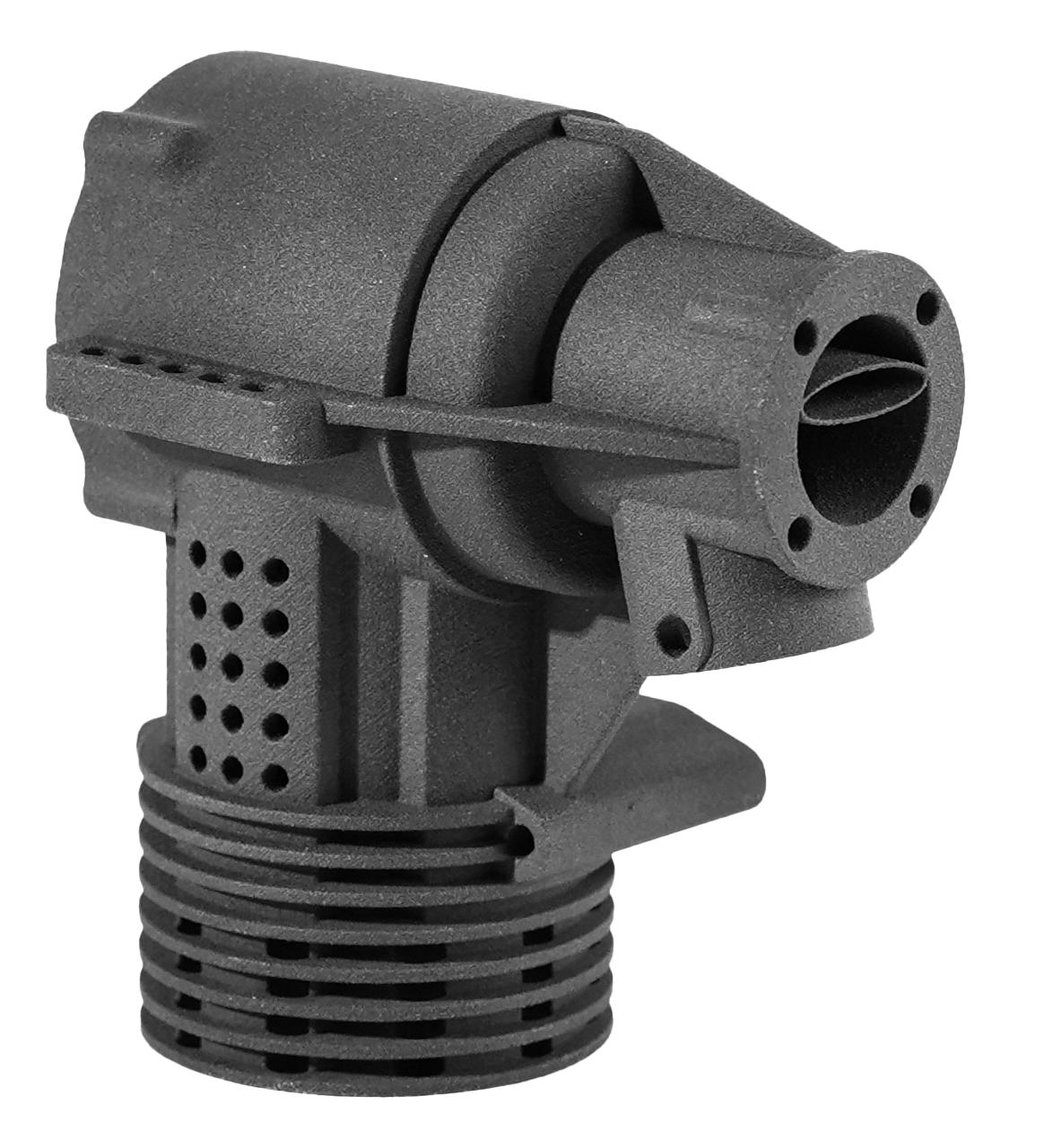

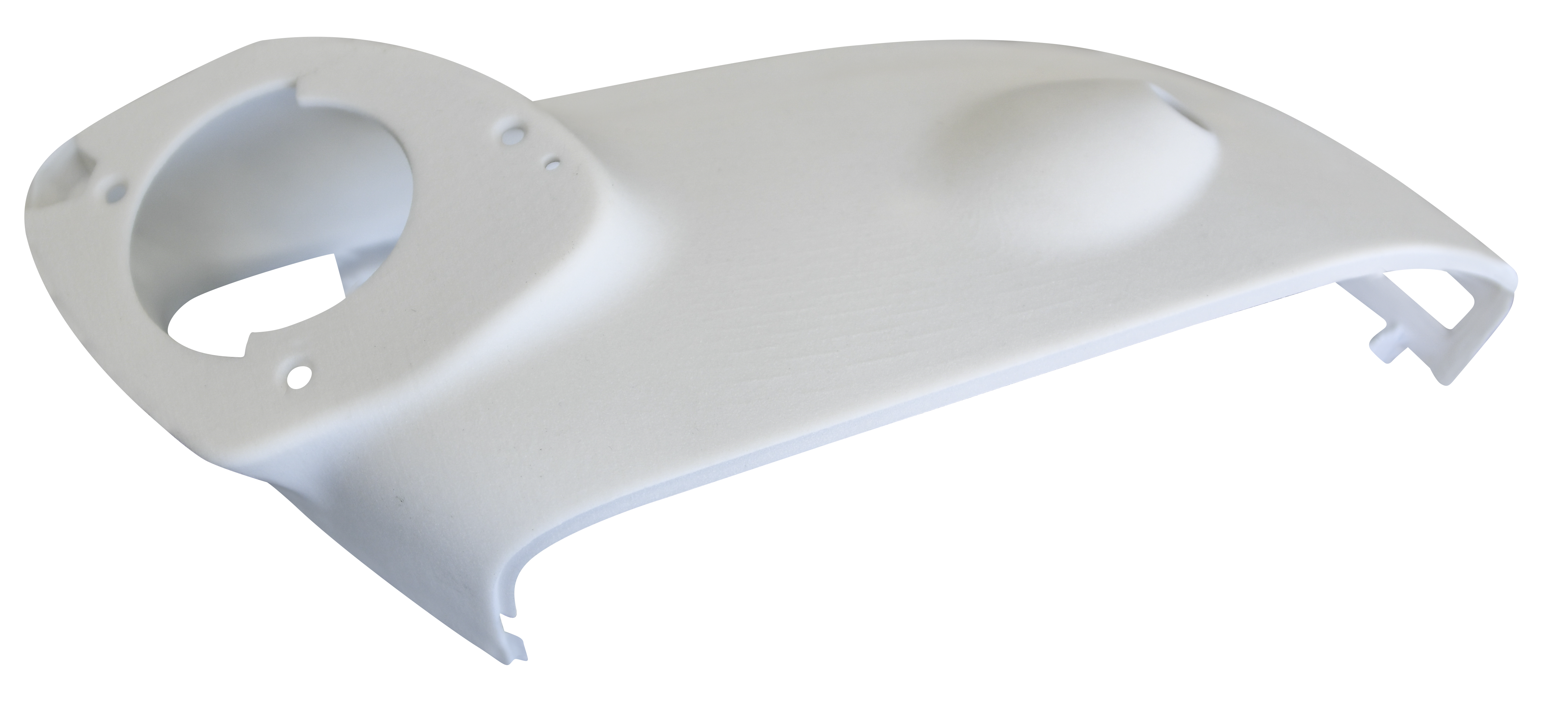

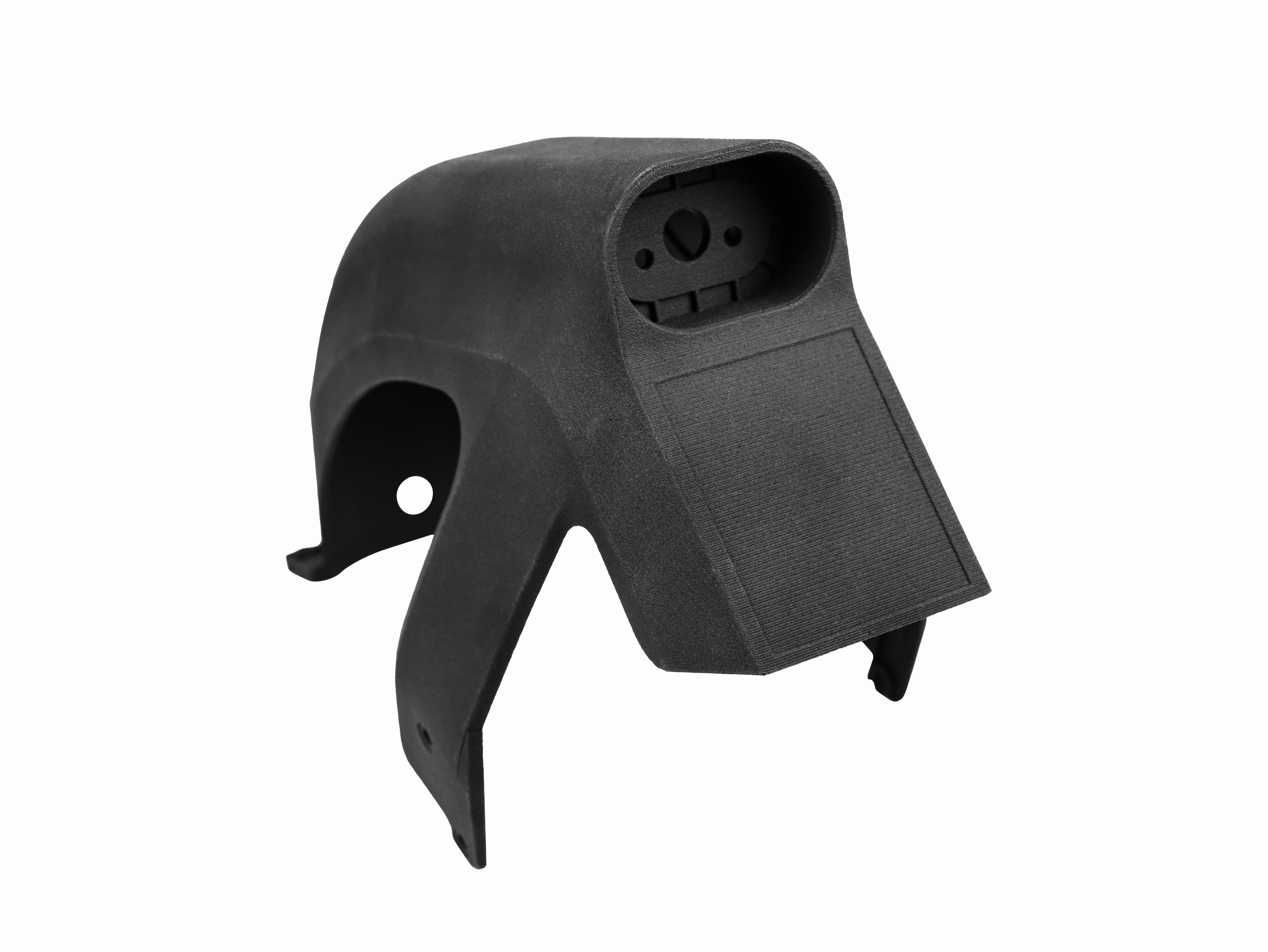

Parts & realizations
Technical data
SX-26 — specifications
| Technology | Powder Bed Fusion (PBF) |
|---|---|
| Build cylinder volume | 260 × 260 × 400 mm |
| Machine footprint | 1260 × 1060 × 2130 mm |
| Net weight | 800 kg |
| Recommended layer thickness | 0.06–0.3 mm |
| Laser system | CO2 60 W or fiber 300 W |
| Maximum build temperature | 280 °C |
| Temperature control | 8 independent zones |
| Power supply | 380 V, three-phase |
| Materials | PA12, PA12GB, TPU-23 |
