Machines / Luxform / LX-6
Luxform · VP
LX-6
Compact Luxform system for prototyping and small-batch production, with the same laser platform and accuracy as the larger models.
Print volume600 × 600 × 400 mm
Layer thickness0.05–0.2 mm
Scanning speed15 m/s
Machine weight990 kg
Key features
Discover the LX-6
01
Intelligent high-speed scanning
Scanning system up to 15 m/s.
02
Variable laser spot and power
Spot from 0.08 to 0.8 mm, adapted to contours and infill.
03
Automatic upskin / downskin recognition
Dedicated parameter database for every layer thickness.
04
Full marble structure
Maximum stability for long-term printing accuracy.
05
High-rigidity recoater
Accuracy and efficiency on every layer.
06
Open resin platform
No proprietary cartridges: compatible with qualified third-party photopolymer resins.
Applications

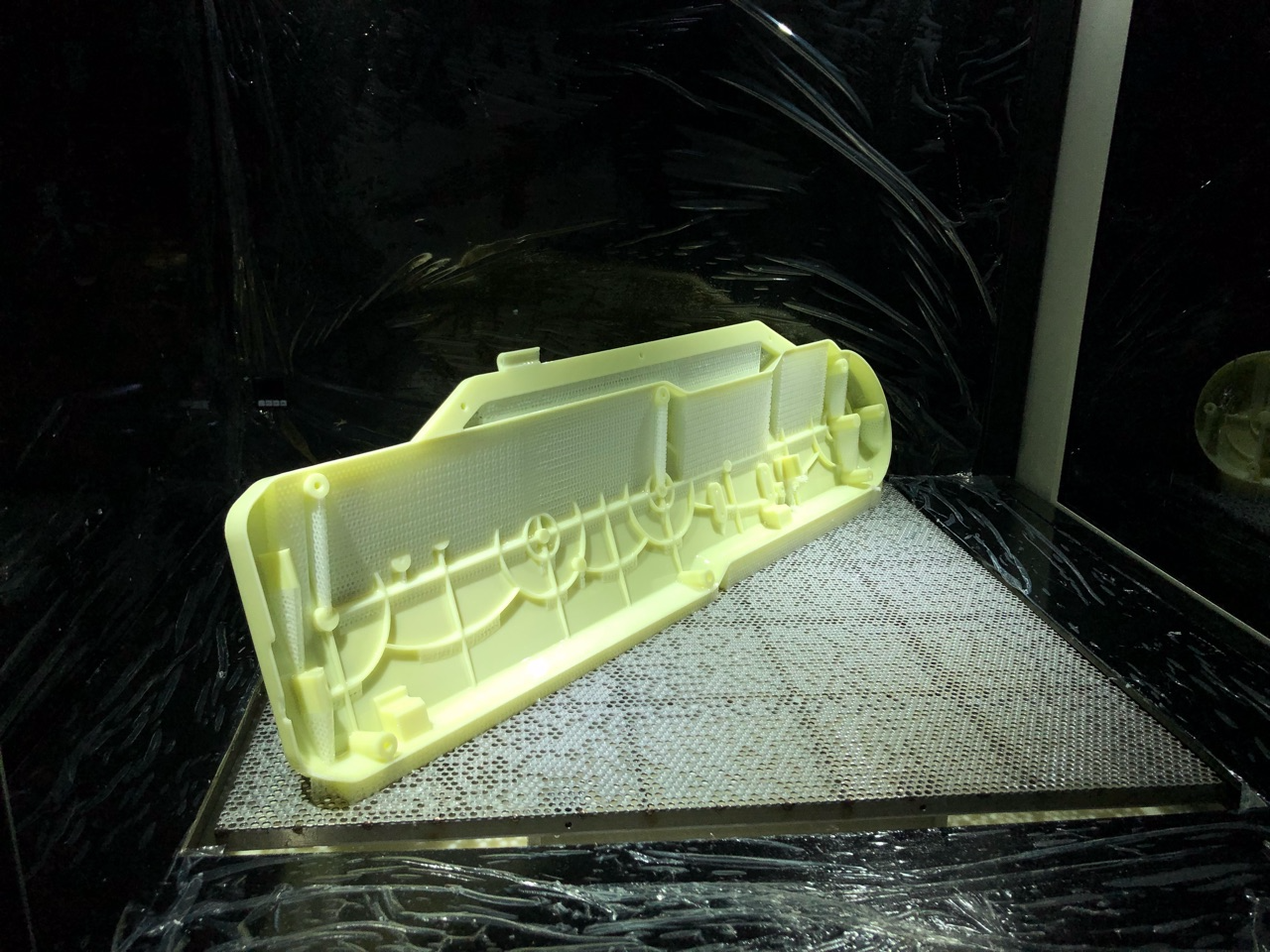

Parts & realizations
Technical data
LX-6 — specifications
| Technology | Vat Photopolymerization (VP) |
|---|---|
| Print volume | 600 × 600 × 400 mm |
| Machine footprint | 118 × 129 × 217 cm |
| Machine weight | 990 kg |
| Installed power | 1.5 kVA |
| Laser source | Nd:YVO4 355 nm, variable spot 0.08–0.8 mm |
| Scanning speed | 15 m/s |
| Layer thickness | 0.05–0.2 mm |
| Accuracy | ±0.1 mm (L ≤ 100 mm) · ±0.1% × L (L > 100 mm) |
| Materials | Photopolymer resins (open system) |
Discuss your LX-6 application
Request a quote, a printed sample or technical information for your project.
