LX-27
Among the largest SLA systems available: large molds and large-scale display structures.
Print volume2700 × 900 × 800 mm
Layer thickness0.05–0.2 mm
Scanning speed15 m/s
Machine weight3750 kg
Key features
Discover the LX-27
01
Intelligent high-speed scanning
Scanning system up to 15 m/s.
02
Variable laser spot and power
Spot from 0.08 to 0.8 mm, adapted to contours and infill.
03
Automatic upskin / downskin recognition
Dedicated parameter database for every layer thickness.
04
Full marble structure
Maximum stability for long-term printing accuracy.
05
High-rigidity recoater
Accuracy and efficiency on every layer.
06
Open resin platform
No proprietary cartridges: compatible with qualified third-party photopolymer resins.
Applications

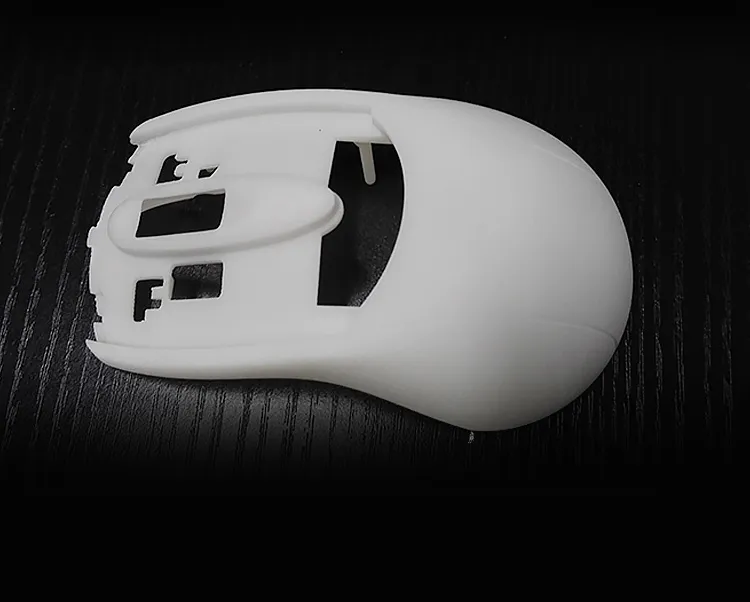

Parts & realizations
Technical data
LX-27 — specifications
| Technology | Vat Photopolymerization (VP) |
|---|---|
| Print volume | 2700 × 900 × 800 mm |
| Machine footprint | 351 × 196 × 273 cm |
| Machine weight | 3750 kg |
| Installed power | 3.0 kVA |
| Laser source | Nd:YVO4 355 nm, variable spot 0.08–0.8 mm |
| Scanning speed | 15 m/s |
| Layer thickness | 0.05–0.2 mm |
| Accuracy | ±0.15 mm (L ≤ 100 mm) · ±0.15% × L (L > 100 mm) |
| Materials | Photopolymer resins (open system) |
